Rain or Shine Retreat - Golf Shed Plan
Electronically Delivered Architectural and Golf Simulator Layouts
Rain or shine, this 352 sq. ft. golf shed lets you work on your game whenever you want. The 15' wide hitting area gives you the space to swing freely, whether you’re shaping shots or dialing in your tempo. Then grab a beverage from the kitchenette and step outside to the covered porch for a break—because you’re here to stay a while.
- Compact and functional golf simulator area
- Modern design with an extended covered porch
- Convenient kitchenette area
- Designed to work with Carl's Built-In Golf Room Kit
- PDF files delivered via email

1 Story

352 sq. ft.

Slab Foundation

Center Hitting

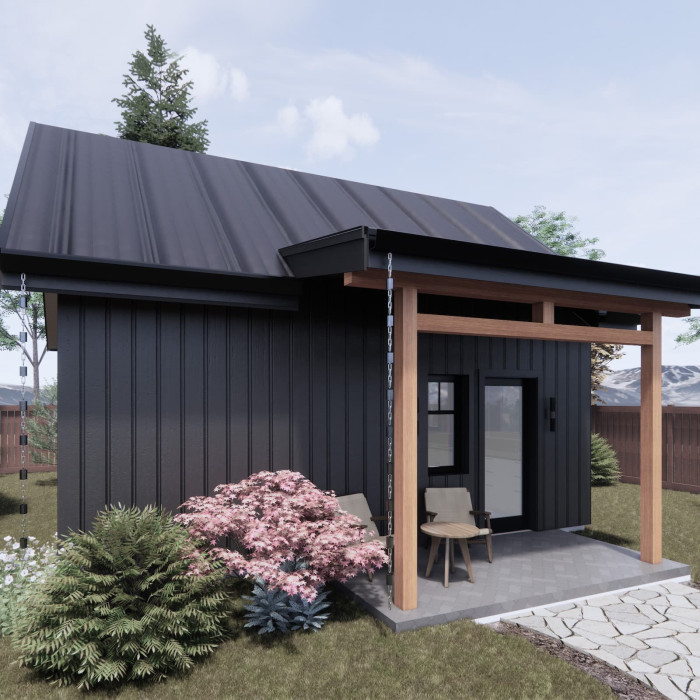

The Rain or Shine Retreat
Golf Simulator Shed Floor Plan
Our Golf Simulator Floor Plans offer the perfect space for your indoor golfing needs. Custom configured by Carl and expert architects, these golf shed plans are perfectly customized for all the components to work together seamlessly. Skip the pain of figuring out if your golf simulator equipment fits inside your shed, with Carl's Golf Shed Plans, all the preliminary work is done for you.

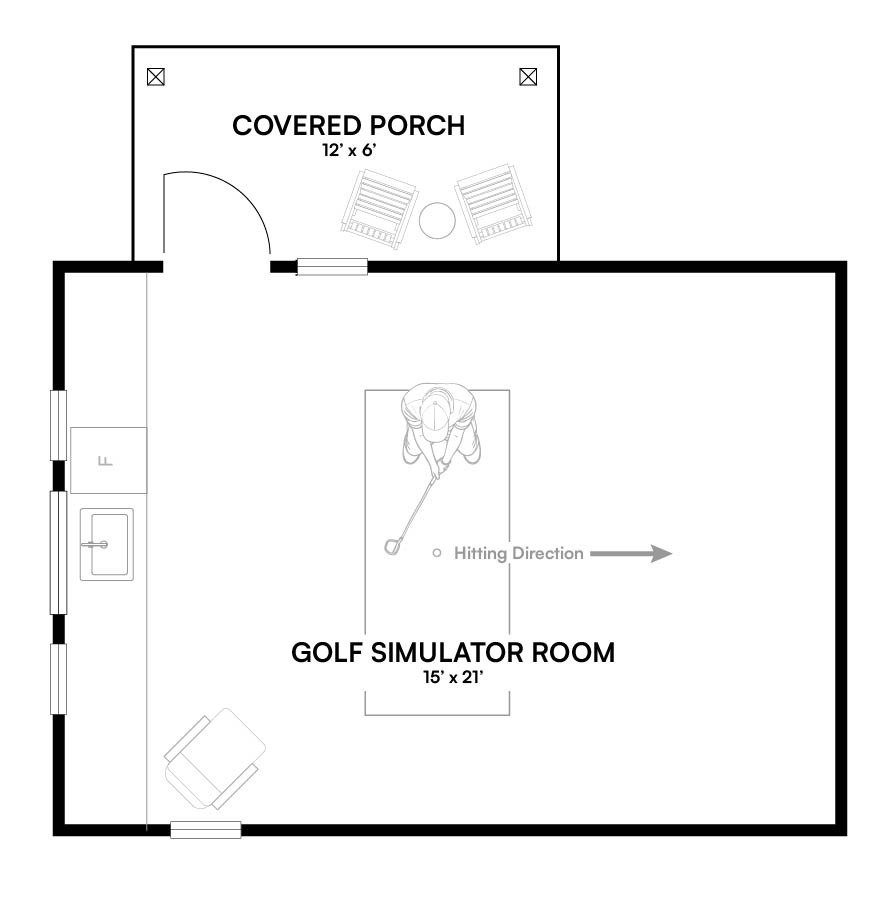

Floor Plan
We'll provide the architectural plans that let you build this 352 sq. ft. golf shed - so you can work on your game rain or shine, whenever you want. The 15' wide hitting area gives you the space to swing freely, whether you’re shaping shots or dialing in your tempo. Then grab a beverage from the kitchenette and step outside to the covered porch for a break—because you’re here to stay a while.

Ordering Information
Once you purchase your golf simulator shed floor plan, you'll receive the digital files via email within one business day. These detailed plans include everything needed to plan your shed build. All floor plan purchases are final. If you do not see the emailed files in your inbox, please check your junk or spam folder. Should there be any further delay, don't hesitate to contact us for assistance.
Customization Options
Our floor plans include all the essential details needed to build your golf simulator shed. If you need help optimizing the golf simulator layout to fit your product preferences, we’re here to guide you. We can also connect you with an experienced architect for any structural modifications to the shed itself—whether to meet local building codes or customize the design. This way, you get expert support to ensure the final build meets your vision.
Expected Build Cost
With these detailed plans, you can take them to a local contractor to get an accurate estimate for construction. Costs will vary based on materials, labor, and any modifications you choose to make. In addition to the shed itself, you can use our Build Your Own Golf Simulator Tool to price out the simulator setup that fits your space and budget.
Summary
Plan | Rain or Shine Retreat |
Delivery | Electronic PDF |
Number of Stories | 1 Story |
Foundation | Slab |
Ideal For |
Beginners, Casual Golfers |
What's Included
What's Included |
Floor Plan |
What's Not Included |
Golf simulator equipment |
Dimensions
Shed Square Footage | 352 sq. ft. |
Shed Dimensions | 17'9"H x 16'W x 22'D |
Recommended Simulator Equipment
Simulator Type | Carl's Built-In Golf Room Kit |
Golf Screen | Carl's Premium |
Aspect Ratio | 16:10 |
Viewable Screen Dimensions | 106"H x 169'W |
Tee Position | Center |
Launch Monitor | Overhead, camera-based |
Projector | BenQ LK936ST |
Accessories | Projector ceiling mount, PC, Turf |
Style
Architectural Style | Modern |
Roof Type | Gable |
Roof Pitch | 10/12 |
Exterior Material | Board and Batten Siding |
Exterior Framing | 2x6 |
Roofing Material | Metal |
Special Features |
Kitchenette |
